Overview

This section will cover general AWS terms and concepts, in addition to a brief overview of AWS cloud service categories and offerings.

Subsections of Overview

Accounts

After initially signing up for AWS, a default root account is created. AWS accounts function as containers for organizing and isolating cloud resources. For example, deployment environments, such as development, staging, and production, often utilize distinct AWS accounts. In addition, accounts act as a security boundary, ensuring only authorized users and systems can access particular cloud resources. 1

Regions and Availability Zones Regions and Availability Zones

An AWS account has the following unique identifiers:2

  • AWS Account ID: 12-digit unique ID
  • Canonical User ID: Obfuscated form of the account ID. Used when granting cross-account access to cloud resources.

The active account ID can be fetched from the Security Token Service (STS) with the following CLI command:

Command

aws sts get-caller-identity --query Account --output text

Output

123456789012

The command aws sts get-caller-identity fetches the active user information leveraged by the CLI, which includes the user ID, the account ID, and the user access resource number (ARN). The --query flag enables users to target a particular field to output in the response and --output specifies the desired format (yaml, josn, text, etc.) 3 4

The simplest way to fetch the canonical ID is via the Simple Storage Service (S3) API CLI command.

Command

aws s3api list-buckets --query Owner.ID --output text

Output

79a59df900b949e55d96a1e698fbacedfd6e09d98eacf8f8d5218e7cd47ef2be

  1. https://docs.aws.amazon.com/accounts/latest/reference/accounts-welcome.html ↩︎

  2. https://docs.aws.amazon.com/general/latest/gr/acct-identifiers.html ↩︎

  3. https://docs.aws.amazon.com/cli/latest/userguide/cli-usage-filter.html ↩︎

  4. https://docs.aws.amazon.com/cli/latest/userguide/cli-usage-output-format.html ↩︎

Subsections of Accounts

Account Alias

Account aliases are public-facing, globally unique labels to simplify the console sign-in URL.

https://<account_alias>.signin.aws.amazon.com/console/

While the original sign-in URL https://<account_id>.signin.aws.amazon.com/console/ remains active, the account alias may provide a more user-friendly identifier. A single account may have multiple account aliases associated with it.

CLI Overview

Account aliases are managed through the Identity and Access Management (IAM) service and may be provisioned, listed, and deleted using the AWS CLI.

Example 1: Creating an Account Alias

Command

aws iam create-account-alias --account-alias techsquawks

Example 2: Listing Account Aliases

Command

aws iam list-account-aliases

Output

{
    "AccountAliases": [
        "techsquawks"
    ]
}

Example 3: Deleting an Account Alias

Command

aws iam delete-account-alias --account-alias techsquawks

Password Policy

Accounts may optionally be associated with a single password policy which dictates the minimum password complexity for account users, to avoid potentially weak password. Password policies consist of the following components1:

  • AllowUsersToChangePassword: Boolean allowing users to change their own passwords from the AWS console. (Default value: false)
  • HardExpiry: Boolean indicating that users will be unable to reset their password via the AWS Console after their current password has expired. (Default value: false)
  • MaxPasswordAge: The number of days that a password is valid for, no less than 0 but not exceeding 1095 (with 0 indicating that the password never expires). (Default value: 0)
  • MinimumPasswordLength: The minimum number of password characters, no less than 6 but not exceeding 128. (Default value: 6)
  • PasswordReusePrevention: The number of previous passwords that account users are prevented from reusing.
  • RequireLowercaseCharacters: Boolean indicating that passwords must contain at least one lowercase character from the ISO basic Latin alphabet (a to z). (Default value: false)
  • RequireNumbers: Boolean indicating that passwords must contain at least one numeric character (0 to 9). (Default value: false)
  • RequireSymbols: Boolean indicating passwords must contain at least one of the following non-alphanumeric characters: ! @ # $ % ^ & * ( ) _ + - = [ ] { } | ' (Default value: false)
  • RequireUppercaseCharacters: Boolean indicating passwords must contain at least one uppercase character from the ISO basic Latin alphabet (A to Z). (Default value: false)

CLI Overview

Example 1: Creating/Updating Password Policy

See here for additional CLI arguments. Fields not specified in the arguments are set to their default values.

Command

aws iam update-account-password-policy

Example 2: Fetch Account Password Policy

Command

aws iam get-account-password-policy

Output

{
    "PasswordPolicy": {
        "MinimumPasswordLength": 6,
        "RequireSymbols": false,
        "RequireNumbers": false,
        "RequireUppercaseCharacters": false,
        "RequireLowercaseCharacters": false,
        "AllowUsersToChangePassword": false,
        "ExpirePasswords": false
    }
}

Example 3: Deleting Account Password Policy

Command

aws iam delete-account-password-policy

  1. https://docs.aws.amazon.com/IAM/latest/APIReference/API_UpdateAccountPasswordPolicy.html ↩︎

Regions and Availability Zones

Regions

An AWS region is a geographic area that contains interconnected AWS data centers used for provisioning cloud resources. Available regions can be listed with the following CLI command:

Command

aws ec2 describe-regions --all-regions --query  Regions[*].RegionName

Output

[
    "af-south-1",
    "eu-north-1",
    "ap-south-1",
    ...
]

Regions are isolated from one another for additional fault tolerance and stability.1 AWS cloud service offerings may differ between regions. Therefore, cloud engineers should verify that any required cloud services are available in the desired regions before beginning development.

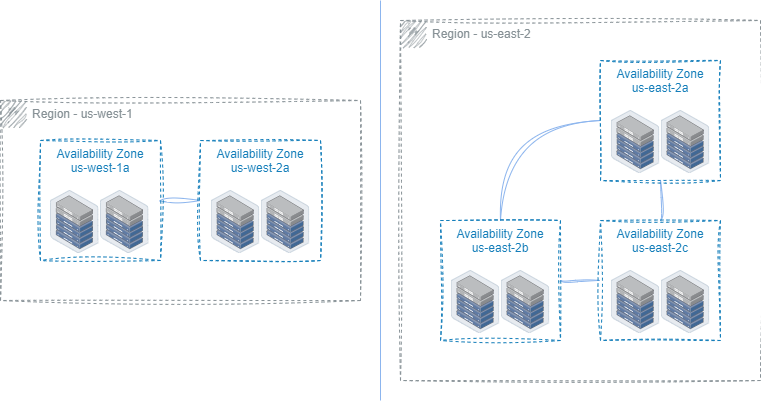

Availability Zones

An availabiilty zone (commonly abreviated as AZ) is one or more discrete AWS data centers that have redundant connectivity, networking, and power within a given AWS region. AZs are interconnected through low-latency networking and data replication. It is considered best practice to deploy cloud applications across multiple AZs for increased fault tolerance, in the event that one or more AZs experience technical outages.2

Regions and Availability Zones Regions and Availability Zones

AZ names are of the following format \<region-name\>\<letter[a-z]\>. For example:.

Command

aws ec2 describe-availability-zones --query AvailabilityZones[*].ZoneName --region us-east-2

Output

[
    "us-east-2a",
    "us-east-2b",
    "us-east-2c"
]

  1. https://aws.amazon.com/about-aws/global-infrastructure/regions_az/ ↩︎

  2. https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/using-regions-availability-zones.html ↩︎

Resources

A resource is a broad term for any cloud entity that can be provisioned in AWS. For instance, servers, virtual private networks, networking policies, and account users are considered AWS resources. Every resource is associated with an Amazon Resource Number (ARN), which uniquely identifies it. ARNs have the following format1:

arn:aws:[service]:[region]:[account-id]:[resource-id]
arn:aws:[service]:[region]:[account-id]:[resource-type]:[resource-id]
arn:aws:[service]:[region]:[account-id]:[resource-type]/[resource-id]

A breakdown of the above fields is provided below:

  • service: The AWS service which the resource is associated with
  • region: Region in which the resource is located.
  • account-id: The account which contains the resource
  • resource-type: The type of service resource (i.e. users, compute servers, managed databases, etc.)
  • resource-id: The unique resource identifier
Info

Certain resources may omit either or both the region, account-id from the ARN.

For instance, the following fetches the ARN of the active AWS user associated with the local developers AWS credentials.

Command

aws sts get-caller-identity --query Arn --output text --region us-east1

Output

arn:aws:iam::012345678910:user/username

For the above output, iam refers to the AWS Identity Access Management service. This is followed by the account number which owns the user entity and the IAM resource is of type user.

Tags

Tags are user-defined metadata that can be attached to resources. This can be used to distinguish and group resources.

For instance, to add a tag to your active user.

Command

export USERNAME=$(aws iam get-user --query  User.UserName)
aws iam tag-user --user-name $USERNAME --tags '{"Tag": "You are it!"}'
aws iam list-user-tags --user-name $USERNAME

Output

{
    "Tags": [
        {
            "Tag": "You are it!"
        }
    ]
}

  1. https://docs.aws.amazon.com/general/latest/gr/aws-arns-and-namespaces.html ↩︎

Services

AWS cloud resources are available through services, APIs accessible through the AWS console or programtically. As an introduction, common service categories and offerings are briefly explored here.1 2

Info

Service offerings and pricing may differ between regions. This should be taken into account when designing cloud applications. A complete listing of AWS services by region is available here

Compute

Compute services enable users to run and host programs and applications.

Name Logo Description
EC2
Elastic Cloud Compute: Provisioning and managing of virtual and private physical servers
ECS
Elastic Container Service: Executing containerized applications on custom infrastructure
EKS
Elastic Kubernetes Service: Managed Kubernetes clusters
Lambda
Code execution in ephemeral environments without need for provisioning/managing underlying infrastructure

Storage

AWS offers various data storage services of the following types:

  • Object Storage: Stores objects, composed of data and user metadata.
  • Block Storage: Data is stored within a block of memory3
  • File Storage: Storage provided via a file system.
Name Logo Description
S3
Simple Storage Service. Object storage where data can be uploaded to uniquely named data buckets under a unique key
EBS
Elastic Block Storage. Provides SSD and HDD block storage for EC2 servers
EFS
Elastic File Storage. Serverless remote storage via the NFSv4 protocol

Database

While databases can be configured by leveraging both compute and storage services, AWS offers database services to facilitate proviioning, managing, and monitoring such systems. These offerings include the following database types:

  • In-Memory: Intended to store frequently accessed values for increased read-performance.
  • Relational: Tabular row data, similar to data stored in spreadsheets. Data typically well-defined.
  • NoSQL: Data stored in documents (key-value pairs) that may not necessarily have a well-defined schema.
  • Time Series: Data is indexed in such a manner so that is easy to query and analyze within a given date range.
Name Logo Description
Elasticache
Managed Redis and Memcached in-memory databases
RDS
Relational Database Service: For provisioning relational database systems (MySQL, Postgres, etc.)
DynamoDB
Key-value NoSQL database
DocumentDB
MongoDB-esque NoSQL database
Timestream
Enables querying for data within a certain date range.
Info

While listed under the analytics category, AWS offers Redshift, a Postgres-esque columnar database, for querying larger datasets. It is intended as a data warehousing solution rather than a general-use database.

Networking & Content Delivery

Networking & Content Delivery services allow cloud developers to define virtual networks, firewall rules, and CDNs to improve latency.

Name Logo Description
VPC
Define virtual private networks within a given IP range
Cloudfront
Managed CDN network for content delivery in different regions of the globe
Route53
Amazon’s DNS service

Security, Identity, & Compliance

Security, Identity, & Compliance services assist with securing and auditing access to both AWS account resources and cloud applications.

Name Logo Description
IAM
Ensures authorized access to AWS cloud resources
Cognito
Provides identity and login managmenet for cloud applications
Secret Manager
Manages storage and access of private application values (i.e. database credentials, private application keys, etc.)

Management and Governance

Management and Governance services are responsible for providing visibility into finacial, application, and user activity in the AWS cloud.

Name Logo Description
Cloudwatch
Application and service logging
Cloudtrail
Audit trail of cloud account activities

  1. https://aws.amazon.com/products ↩︎

  2. https://docs.aws.amazon.com/whitepapers/latest/aws-overview ↩︎

  3. https://www.ibm.com/cloud/learn/block-storage ↩︎
